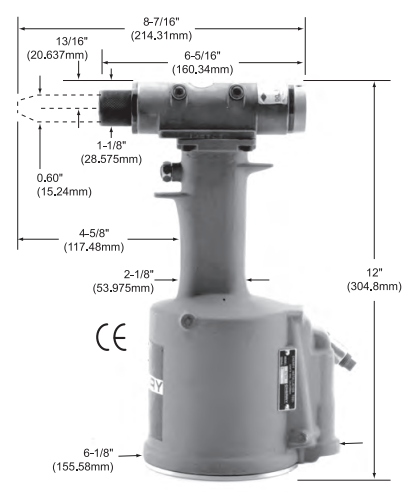

CherryMax® – G784 Double Action CherryLOCK® Riveter

G784 is a medium duty double action pneumatic hydraulic riveter designed for installation of the double action CherryLOCK® Wiredraw rivets.

Call for Price

In Stock

Description

G784 is a medium duty double action pneumatic hydraulic riveter designed for installation of the double action CherryLOCK® Wiredraw rivets. It has a custom mounting system only compatible with double action pulling heads (H681), but with proper adapters it can be used with other front or side eject pulling heads.

SPECIFICATIONS
Air Pressure 90 psi (6,2 bar) min./110 psi (7,6 bar) max.
Stroke 0.875 inch (22,2 mm)
Pulling Force 2,600 lbs. (11,57 kN) @ 90 psi (6,2 bar),
Weight 8 lbs. (3,63 kg)
Noise Level 69.7 dB (A)
Vibration less than 2.5 m/s2
Air Consumption 0.27 SCF/cycle (7,65 L/cycle)
